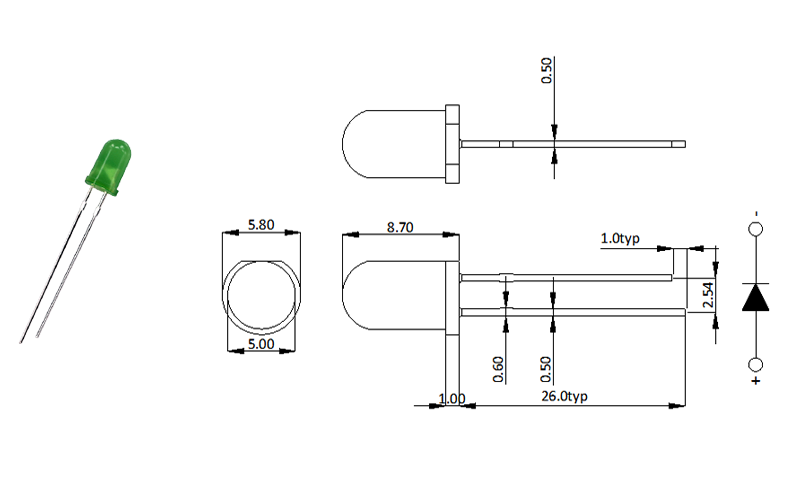

5mm Series
产品详情
应用领域
背光、状态指示器、家用和智能电器、可穿戴和便携式设备、医疗保健应用、交通灯、，
| Part Number | Emitting Color | Wavelength(nm)/TYP | Luminous Intensity(mcd)/TYP | Viewing Angle (2θ ½） | Lens Color | Size(mm) | DataSheet |
| GL5042RDD-122 |  Red | 620 | 500 | 60 | Red Diffused | Φ5.0*8.7 | |
| GL5042ODD-122 |  Orange | 605 | 500 | 60 | Orange Diffused | Φ5.0*8.7 | |
| GL5042YDD-122 |  Yellow | 590 | 500 | 60 | Yellow Diffused | Φ5.0*8.7 | |
| GL5042YGDD-122 |  Yellow Green | 570 | 50 | 60 | Green Diffused | Φ5.0*8.7 | |
| GL5042GDD-132 |  Pure Green | 520 | 4000 | 60 | Green Diffused | Φ5.0*8.7 | |
| GL5042BDD-132 |  Blue | 465 | 500 | 60 | Blue Diffused | Φ5.0*8.7 | |
| GL5042WDD-132 |  White | x:0.28,y:0.28 | 6000 | 60 | White Diffused | Φ5.0*8.7 |
