3030 Series
产品详情
应用领域
背光显示器、状态指示器、照明装饰、家用和智能电器、可穿戴和便携式设备、医疗保健应用。

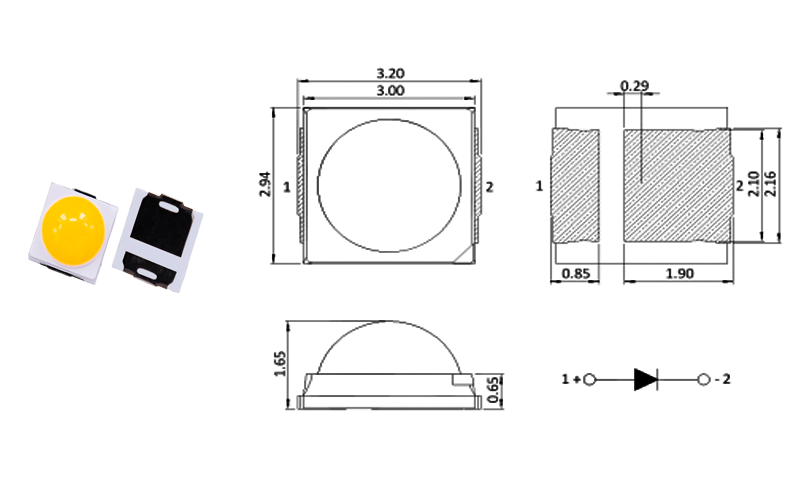

| Part Number | Emitting Color | Wavelength(nm) | Luminous Flux(lm) | Viewing Angle (2θ ½） | Lens Color | Size(mm) | DataSheet |
| GT3030Q3RCF-121W |  Red | 616-628 | 20-80 | 120 | Water clear | 3.2*2.94*1.65 | |
| GT3030Q3OCF-121W |  Orange | 600-610 | 20-80 | 120 | Water clear | 3.2*2.94*1.65 | |
| GT3030Q3YCF-121W |  Yellow | 585-595 | 20-80 | 120 | Water clear | 3.2*2.94*1.65 | |
| GT3030Q3GCF-131W |  Pure Green | 515-535 | 70-80 | 120 | Water clear | 3.2*2.94*1.65 | |
| GT3030Q3BCF-131W |  White | 460-475 | 15-25 | 120 | Water clear | 3.2*2.94*1.65 | |
| GT3030Q3WYF-131W |  Blue | 1600-20000k | 100-150 | 120 | Yellow Diffused | 3.2*2.94*1.65 |
