3224 Series
产品详情
应用领域
状态指示器、工业控制面板、传感器状态指示、可穿戴和便携式设备

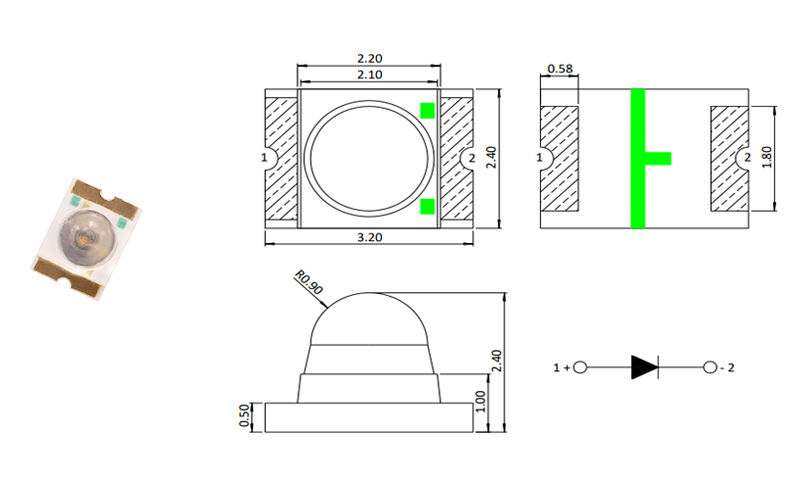

| Part Number | Emitting Color | Wavelength(nm) | Luminous Intensity(mcd) | Viewing Angle (2θ ½） | Lens Color | Size(mm) | DataSheet |
| GC3224Q2RCF-122 |  Red | 615-630 | 200-600 | 30 | Water clear | 3.2*2.4*2.4 | |
| GC3224Q2OCF-122 |  Orange | 600-610 | 200-600 | 30 | Water clear | 3.2*2.4*2.4 | |
| GC3224Q2YCF-122 |  Yellow | 585-595 | 200-600 | 30 | Water clear | 3.2*2.4*2.4 | |
| GC3224Q2YGCF-122 |  Yellow Green | 565-575 | 70-150 | 30 | Water clear | 3.2*2.4*2.4 | |
| GC3224Q2GCF-132 |  Pure Green | 515-535 | 1500-2500 | 30 | Water clear | 3.2*2.4*2.4 | |
| GC3224Q2BCF-132 |  Blue | 460-475 | 200-600 | 30 | Water clear | 3.2*2.4*2.4 |
