3535 1-3W Flip Chip Series
产品详情
应用领域
警示灯、装饰照明、汽车灯具、指示灯、户外照明。
| Part Number | Emitting Color | CCT(k) | Luminous Flux(lm) | Viewing Angle (2θ ½） | Lens Color | Size(mm) | DataSheet |
| GH3535QWWYF-133W |  Warm White | 2400-3700 | 150-200 | 120 | Yellow Diffused | 3.45*3.45*2.26 | |
| GH3535QNWYF-133W |  Neutral White | 3700-4700 | 220-280 | 120 | Yellow Diffused | 3.45*3.45*2.26 | |
| GH3535QPWYF-133W |  Pure White | 4700-7000 | 240-280 | 120 | Yellow Diffused | 3.45*3.45*2.26 | |

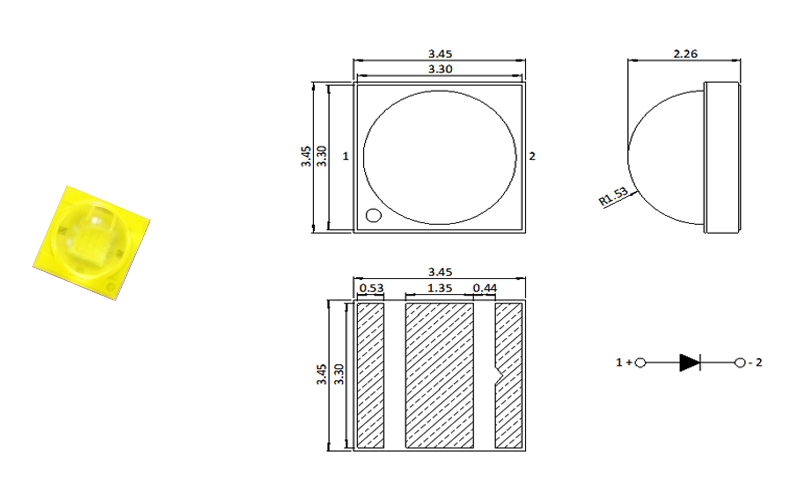

| GH3535QCWYF-133W | Cool White | 7000-11000 | 240-280 | 120 | Yellow Diffused | 3.45*3.45*2.26 |
